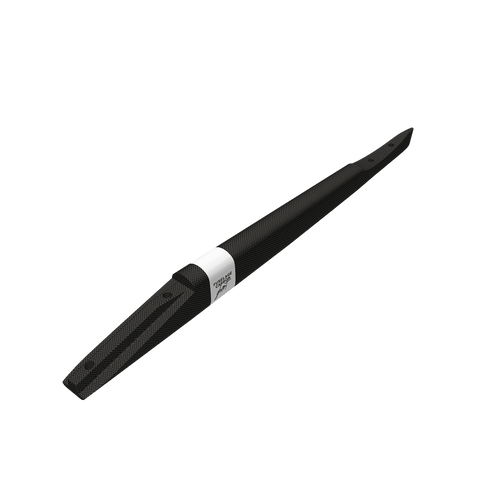

F-One Carbon Fuselage Short

(No reviews yet) Write a Review
Shipping:
Calculated at Checkout
$180.00


Description

FUSELAGE CARBON SHORT

The FUSELAGE CARBON is an essential complement to the F-ONE Monobloc carbon wings. It connects with the front wing behind the TITAN mast slot in an area where the loads are reduced. Still, the shape of the connection is inspired from the TITAN design and offers a very robust and stiff assembly. At the back, the cradle for the stabilizer is designed with the right angle to make the front wing fly with ease and efficiency.

The FUSELAGE CARBON is built in pre-preg carbon with a foam core to keep the weight extremely light. Some solidly anchored brass inserts are used for all fastenings.

  • Best maneuverability
  • Better responsiveness
  • Ultra-light carbon construction

This fuselage is recommended with the PHANTOM CARBON 1480 / 1780. Our carbon fuselages are available in different sizes. A longer fuselage will bring more stability, while a shorter fuselage will help with sharp and quick turns.

Weight: 0.20 kg
Length: 37 cm

F-One Foil Hardware Guide

F-One Foil Hardware Guide

Connection Head Qty and Length Diameter
FW to RW Tail Split Carbon Fuse Recessed Star 2 x 25mm M6
RW Stabilizer to Fuse Recessed Star 2 x 15mm M6
Mast to Titan Mast Foot Recessed Star 2 x 25mm M6
Mast to Top Plate Recessed Star 2 x 25mm M6
Mast to Carbon FW Fuse Recessed Star 3 x 30/32mm M6
Mast to Aluminum Fuse Recessed Star 2 x 25mm M6
Mast Plate to Board Recessed Star 4 x 25mm M6
FCT front wing Recessed Star 4 x 14mm M6
4-Point Foil Mount Adapter Plate Recessed Star 4 x 15mm M6
