Description
SURF PERFORMANCE

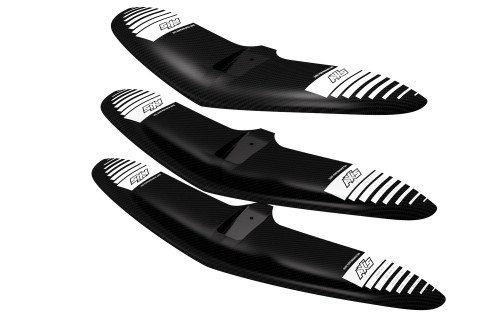

Our carbon front wings specialized for small wave prone foil.
This unique design features a dihedral, or V–shape where the foil joins the mast. When the foil is rolled over in a turn, this has the effect of reducing lift generated from the opposite side of the foil, as it will be on a more vertical angle. This greatly assists tight carving and loose turning when Prone, SUP, Wing, Wind, Tow or Kite foiling.
The foil section is the same as the PNG (thinner, high camber), further maximising its small or slow wave prowess and ability to achieve the holy grail – pumping back out and straight onto the next wave.
SP is not only for small wave riding. These wings are tons of fun for winging (SP860), windsurfing, kiting or behind the boat. When super loose riding is what you are looking for, the SP wings make it all possible.
SP foils are ideally matched with our Freeride Small rear wing range.
SP 660
Ideal for:
- Prone foiling bigger waves
- Tow-in foiling
- Kite Foiling freeride or waves
SP 760
Ideal for:
- Prone foiling bigger waves
- Tow-in foiling
- Kite Foiling freeride or waves
SP 860
Ideal for:
- Prone foiling medium / small waves
- Kite Foiling freeride or waves in light or medium winds
- SUP foiling on bigger days
- Wing surfing on bigger days
- Wake foiling behind first wake
Axis Foil Hardware Guide
Connection | Head | Qty and Length | Diameter |
---|---|---|---|
Base Plate to Mast | Star Recessed | 2 x 35mm | M8 |
Aluminum Fuselage to Mast (through Doodad) | Star Recessed | 2 x 70mm | M8 |
Carbon Fuselage to Mast | Star Recessed | 2 x 30mm | M8 |
Front Wing | Model | Front Screws | Middle Screw | Rear Screw |
---|---|---|---|---|
High Performance Speed (HPS) | 1050 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
High Performance Speed (HPS) | 980 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
High Performance Speed (HPS) | 930 | M6 x 14mm | M8 x 16mm | M8 x 20mm |
High Performance Speed (HPS) | 880 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
High Performance Speed (HPS) | 830 | M6 x 14mm | M8 x 16mm | M8 x 20mm |
High Performance Speed (HPS) | 700 | M6 x 14mm | M8 x 16mm | M8 x 20mm |
High Performance Speed (HPS) | 650 | M6 x 14mm | M8 x 16mm | M8 x 20mm |
Broad Spectrum Carve (BSC) | 1120 | M8 x 20mm | M8 x 20mm | M8 x 20mm |
Broad Spectrum Carve (BSC) | 1060 | M8 x 20mm | M8 x 20mm | M8 x 20mm |
Broad Spectrum Carve (BSC) | 970 | M8 x 20mm | M8 x 20mm | M8 x 20mm |
Broad Spectrum Carve (BSC) | 890 | M6 x 18mm | M8 x 20mm | M8 x 20mm |
Broad Spectrum Carve (BSC) | 810 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Broad Spectrum Carve (BSC) | 740 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Pump & Glide (PNG) | 1310 | M8 x 20mm | M8 x 20mm | M8 x 20mm |
Pump & Glide (PNG) | 1300 | M8 x 20mm | - | M8 x 20mm |
Pump & Glide (PNG) | 1150 | M8 x 20mm | - | M8 x 20mm |
Pump & Glide (PNG) | 1010 | M8 x 20mm | - | M8 x 20mm |
Pump & Glide (PNG) | 910 | M8 x 20mm | - | M8 x 20mm |
Pump & Glide (PNG) | 910B | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Pump & Glide (PNG) | 850 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Surf Performance (SP) | 860 | M8 x 20mm | M8 x 20mm | M8 x 20mm |
Surf Performance (SP) | 760 | M8 x 20mm | M8 x 20mm | M8 x 20mm |
Surf Performance (SP) | 660 | M8 x 20mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team (ART) | 1099 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team (ART) | 999 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team (ART) | 899 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
AXIS Research Team (ART) | 799 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
AXIS Research Team (ART) | 699 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
AXIS Research Team PRO (ARTPRO) | 1401 | M6 x 14mm | M8 x 25mm | M8 x 25mm |
AXIS Research Team PRO (ARTPRO) | 1201 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team PRO (ARTPRO) | 1121 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team PRO (ARTPRO) | 1051 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team PRO (ARTPRO) | 1001 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team PRO (ARTPRO) | 1001 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team PRO (ARTPRO) | 951 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team PRO (ARTPRO) | 901 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team PRO (ARTPRO) | 851 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
AXIS Research Team PRO (ARTPRO) | 801 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
AXIS Research Team PRO (ARTPRO) | 751 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
AXIS Research Team V2 (ART V2) | 999 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team V2 (ART V2) | 939 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team V2 (ART V2) | 879 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Spitfire | 1100 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Spitfire | 1030 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Spitfire | 960 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Spitfire | 900 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Spitfire | 840 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Spitfire | 780 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Spitfire | 720 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
Spitfire | 670 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
Spitfire | 620 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
Fuselage Compatibility Guide: | Black only | Red only | Both | All Screws are Star Recessed |
Rear Wing | Model | Front Screw | Back Screw | |
Freeride | 500A/90 | M6 x 25mm | M6 x 25mm | |
Freeride | 500/90 | M6 x 25mm | M6 x 25mm | |
Freeride | 440/90 | M6 x 25mm | M6 x 25mm | |
Freeride | 400/90 | M6 x 25mm | M6 x 25mm | |
Freeride Small | 390/80 | M6 x 25mm | M6 x 25mm | |
Freeride Small | 370/80 | M6 x 25mm | M6 x 25mm | |
Freeride Small | 340/80 | M6 x 25mm | M6 x 25mm | |
Pump | 460/60 | M6 x 22mm | M6 x 22mm | |
Progressive | 475/68 | M6 x 22mm | M6 x 22mm | |
Progressive | 450/67 | M6 x 22mm | M6 x 22mm | |
Progressive | 425/66 | M6 x 22mm | M6 x 22mm | |
Progressive | 400/65 | M6 x 22mm | M6 x 22mm | |
Progressive | 375/64 | M6 x 22mm | M6 x 22mm | |
Progressive | 350/63 | M6 x 22mm | M6 x 22mm | |
Progressive | 325/62 | M6 x 22mm | M6 x 22mm | |
Progressive | 300/61 | M6 x 22mm | M6 x 22mm | |
Progressive | 275/58 | M6 x 22mm | M6 x 22mm | |
Progressive | 250/56 | M6 x 22mm | M6 x 22mm | |
Speed | 420/60 | M6 x 22mm | M6 x 22mm | |
Speed | 380/60 | M6 x 22mm | M6 x 22mm | |
Speed | 400F/60 | M6 x 22mm | M6 x 22mm | |
Skinny | 365/55 | M6 x 22mm | M6 x 22mm | |
Skinny | 362/50 | M6 x 22mm | M6 x 22mm | |
Skinny | 360/45 | M6 x 22mm | M6 x 22mm | |
Skinny | 359/45 | M6 x 22mm | M6 x 22mm | |
Skinny | 358/45 | M6 x 22mm | M6 x 22mm | |
Fuselage Compatibility Guide: | Black only | Red only | Both | All Screws are Star Recessed |
