Description

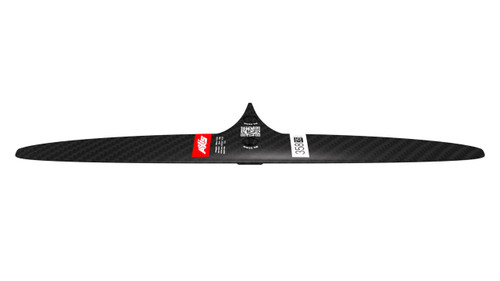

Axis SKINNY Carbon Rear Wing
Sizes:
- 358/35
- 359/40
- 360/45
- 362/50
- 365/55
The development of the much faster-running ARTPRO wings prompted us to begin experimenting with reduced chord rear stabilisers to maximise this newfound speed advantage. With minimal span changes (just 7mm between them) and drastic chord reduction down to 55, 50, 45, 40 and 35mm, we found positive gains in speed, control, balance and feel. The Skinnies have inherited many of the same characterises that make our Progressive range so popular, like the precise feel and seamless turn initiation plus recovery.
They are very low drag and free up speed and turning. Heavier riders and those less experienced will gravitate to the 55, 50 and 45 chord models, those who are lighter and or have greater experience might opt to reduce drag in the extreme and try the 40 or 35mm chord options.
The Skinniy rear wings inspire confidence by providing a more comfortable ride at speed, they reduce the normal buildup of front foot pressure that can be associated with high-speed foiling. They are a perfect match to ARTPRO foils, but keep in mind, your HPS, ART, PNG and even BSC, will equally benefit from the Skinny high-performance DNA.
Axis Foil Hardware Guide
Connection | Head | Qty and Length | Diameter |
---|---|---|---|
Base Plate to Mast | Star Recessed | 2 x 35mm | M8 |
Aluminum Fuselage to Mast (through Doodad) | Star Recessed | 2 x 70mm | M8 |
Carbon Fuselage to Mast | Star Recessed | 2 x 30mm | M8 |
Front Wing | Model | Front Screws | Middle Screw | Rear Screw |
---|---|---|---|---|
High Performance Speed (HPS) | 1050 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
High Performance Speed (HPS) | 980 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
High Performance Speed (HPS) | 930 | M6 x 14mm | M8 x 16mm | M8 x 20mm |
High Performance Speed (HPS) | 880 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
High Performance Speed (HPS) | 830 | M6 x 14mm | M8 x 16mm | M8 x 20mm |
High Performance Speed (HPS) | 700 | M6 x 14mm | M8 x 16mm | M8 x 20mm |
High Performance Speed (HPS) | 650 | M6 x 14mm | M8 x 16mm | M8 x 20mm |
Broad Spectrum Carve (BSC) | 1120 | M8 x 20mm | M8 x 20mm | M8 x 20mm |
Broad Spectrum Carve (BSC) | 1060 | M8 x 20mm | M8 x 20mm | M8 x 20mm |
Broad Spectrum Carve (BSC) | 970 | M8 x 20mm | M8 x 20mm | M8 x 20mm |
Broad Spectrum Carve (BSC) | 890 | M6 x 18mm | M8 x 20mm | M8 x 20mm |
Broad Spectrum Carve (BSC) | 810 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Broad Spectrum Carve (BSC) | 740 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Pump & Glide (PNG) | 1310 | M8 x 20mm | M8 x 20mm | M8 x 20mm |
Pump & Glide (PNG) | 1300 | M8 x 20mm | - | M8 x 20mm |
Pump & Glide (PNG) | 1150 | M8 x 20mm | - | M8 x 20mm |
Pump & Glide (PNG) | 1010 | M8 x 20mm | - | M8 x 20mm |
Pump & Glide (PNG) | 910 | M8 x 20mm | - | M8 x 20mm |
Pump & Glide (PNG) | 910B | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Pump & Glide (PNG) | 850 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Surf Performance (SP) | 860 | M8 x 20mm | M8 x 20mm | M8 x 20mm |
Surf Performance (SP) | 760 | M8 x 20mm | M8 x 20mm | M8 x 20mm |
Surf Performance (SP) | 660 | M8 x 20mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team (ART) | 1099 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team (ART) | 999 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team (ART) | 899 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
AXIS Research Team (ART) | 799 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
AXIS Research Team (ART) | 699 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
AXIS Research Team PRO (ARTPRO) | 1401 | M6 x 14mm | M8 x 25mm | M8 x 25mm |
AXIS Research Team PRO (ARTPRO) | 1201 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team PRO (ARTPRO) | 1121 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team PRO (ARTPRO) | 1051 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team PRO (ARTPRO) | 1001 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team PRO (ARTPRO) | 1001 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team PRO (ARTPRO) | 951 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team PRO (ARTPRO) | 901 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team PRO (ARTPRO) | 851 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
AXIS Research Team PRO (ARTPRO) | 801 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
AXIS Research Team PRO (ARTPRO) | 751 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
AXIS Research Team V2 (ART V2) | 999 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team V2 (ART V2) | 939 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team V2 (ART V2) | 879 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Spitfire | 1100 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Spitfire | 1030 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Spitfire | 960 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Spitfire | 900 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Spitfire | 840 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Spitfire | 780 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Spitfire | 720 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
Spitfire | 670 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
Spitfire | 620 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
Fuselage Compatibility Guide: | Black only | Red only | Both | All Screws are Star Recessed |
Rear Wing | Model | Front Screw | Back Screw | |
Freeride | 500A/90 | M6 x 25mm | M6 x 25mm | |
Freeride | 500/90 | M6 x 25mm | M6 x 25mm | |
Freeride | 440/90 | M6 x 25mm | M6 x 25mm | |
Freeride | 400/90 | M6 x 25mm | M6 x 25mm | |
Freeride Small | 390/80 | M6 x 25mm | M6 x 25mm | |
Freeride Small | 370/80 | M6 x 25mm | M6 x 25mm | |
Freeride Small | 340/80 | M6 x 25mm | M6 x 25mm | |
Pump | 460/60 | M6 x 22mm | M6 x 22mm | |
Progressive | 475/68 | M6 x 22mm | M6 x 22mm | |
Progressive | 450/67 | M6 x 22mm | M6 x 22mm | |
Progressive | 425/66 | M6 x 22mm | M6 x 22mm | |
Progressive | 400/65 | M6 x 22mm | M6 x 22mm | |
Progressive | 375/64 | M6 x 22mm | M6 x 22mm | |
Progressive | 350/63 | M6 x 22mm | M6 x 22mm | |
Progressive | 325/62 | M6 x 22mm | M6 x 22mm | |
Progressive | 300/61 | M6 x 22mm | M6 x 22mm | |
Progressive | 275/58 | M6 x 22mm | M6 x 22mm | |
Progressive | 250/56 | M6 x 22mm | M6 x 22mm | |
Speed | 420/60 | M6 x 22mm | M6 x 22mm | |
Speed | 380/60 | M6 x 22mm | M6 x 22mm | |
Speed | 400F/60 | M6 x 22mm | M6 x 22mm | |
Skinny | 365/55 | M6 x 22mm | M6 x 22mm | |
Skinny | 362/50 | M6 x 22mm | M6 x 22mm | |
Skinny | 360/45 | M6 x 22mm | M6 x 22mm | |
Skinny | 359/45 | M6 x 22mm | M6 x 22mm | |
Skinny | 358/45 | M6 x 22mm | M6 x 22mm | |
Fuselage Compatibility Guide: | Black only | Red only | Both | All Screws are Star Recessed |
