Description
Axis PRO Ultra High Modulus Carbon Mast
Sizes: 720 / 800 / 900 / 1050
Affectionately named the 'dogleg' by the test team, the PRO – Ultra High Modulus Carbon is quite a departure from the industry's more conventional masts.
Building on the impressive performance and stiffness of our existing Carbon mast program, the PRO – Ultra High Modulus Carbon boasts an unbelievable 55% increase in stiffness and incredible torsional rigidity as compared to our industry-standard 19mm Alloy mast. (By comparison, our Power Carbon and Power Carbon High Modulus are 25% and 35% stiffer respectively)
Not just stiffer, but thinner and narrower, with a 12.5mm reduction in chord in the bottom half of the mast (compared to power carbon masts), and a 1.5mm reduction in thickness (13.5mm thickness in the bottom section of the mast where it counts).
Another factor that sets this mast apart from the rest, is its radical new and unconventional foil section. It's quite a departure from conventional foil sections that have a tendency to become 'locked In' as speed increases. Our exclusive PRO Mast foil section has its widest point moved back on the mast, allowing freer turning at any speed. Our modelling predicted 20% less drag, but didn't prepare us for its slippery willingness to go fast and turn like nothing we've experienced.
As the name implies the PRO – Ultra High Modulus Carbon is constructed from military grade ultra-high modulus materials, which, while they raise the cost of production, do provide the ultimate ride.

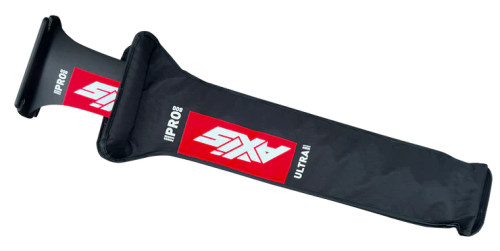

The PRO – Ultra High Modulus Carbon ships in a custom high-quality protective mast bag and is completely compatible with all our products.
Available in 3 sizes, 800mm (31.49"), 900mm (35.43"), 1050mm (41.33").
Matching the PRO – Ultra High Modulus Carbon with any of your existing AXIS foils will elevate your foiling experience to the next level.
Axis Foil Hardware Guide
Connection | Head | Qty and Length | Diameter |
---|---|---|---|
Base Plate to Mast | Star Recessed | 2 x 35mm | M8 |
Aluminum Fuselage to Mast (through Doodad) | Star Recessed | 2 x 70mm | M8 |
Carbon Fuselage to Mast | Star Recessed | 2 x 30mm | M8 |
Front Wing | Model | Front Screws | Middle Screw | Rear Screw |
---|---|---|---|---|
High Performance Speed (HPS) | 1050 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
High Performance Speed (HPS) | 980 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
High Performance Speed (HPS) | 930 | M6 x 14mm | M8 x 16mm | M8 x 20mm |
High Performance Speed (HPS) | 880 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
High Performance Speed (HPS) | 830 | M6 x 14mm | M8 x 16mm | M8 x 20mm |
High Performance Speed (HPS) | 700 | M6 x 14mm | M8 x 16mm | M8 x 20mm |
High Performance Speed (HPS) | 650 | M6 x 14mm | M8 x 16mm | M8 x 20mm |
Broad Spectrum Carve (BSC) | 1120 | M8 x 20mm | M8 x 20mm | M8 x 20mm |
Broad Spectrum Carve (BSC) | 1060 | M8 x 20mm | M8 x 20mm | M8 x 20mm |
Broad Spectrum Carve (BSC) | 970 | M8 x 20mm | M8 x 20mm | M8 x 20mm |
Broad Spectrum Carve (BSC) | 890 | M6 x 18mm | M8 x 20mm | M8 x 20mm |
Broad Spectrum Carve (BSC) | 810 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Broad Spectrum Carve (BSC) | 740 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Pump & Glide (PNG) | 1310 | M8 x 20mm | M8 x 20mm | M8 x 20mm |
Pump & Glide (PNG) | 1300 | M8 x 20mm | - | M8 x 20mm |
Pump & Glide (PNG) | 1150 | M8 x 20mm | - | M8 x 20mm |
Pump & Glide (PNG) | 1010 | M8 x 20mm | - | M8 x 20mm |
Pump & Glide (PNG) | 910 | M8 x 20mm | - | M8 x 20mm |
Pump & Glide (PNG) | 910B | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Pump & Glide (PNG) | 850 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Surf Performance (SP) | 860 | M8 x 20mm | M8 x 20mm | M8 x 20mm |
Surf Performance (SP) | 760 | M8 x 20mm | M8 x 20mm | M8 x 20mm |
Surf Performance (SP) | 660 | M8 x 20mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team (ART) | 1099 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team (ART) | 999 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team (ART) | 899 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
AXIS Research Team (ART) | 799 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
AXIS Research Team (ART) | 699 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
AXIS Research Team PRO (ARTPRO) | 1401 | M6 x 14mm | M8 x 25mm | M8 x 25mm |
AXIS Research Team PRO (ARTPRO) | 1201 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team PRO (ARTPRO) | 1121 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team PRO (ARTPRO) | 1051 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team PRO (ARTPRO) | 1001 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team PRO (ARTPRO) | 1001 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team PRO (ARTPRO) | 951 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team PRO (ARTPRO) | 901 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team PRO (ARTPRO) | 851 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
AXIS Research Team PRO (ARTPRO) | 801 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
AXIS Research Team PRO (ARTPRO) | 751 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
AXIS Research Team V2 (ART V2) | 999 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team V2 (ART V2) | 939 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team V2 (ART V2) | 879 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Spitfire | 1100 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Spitfire | 1030 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Spitfire | 960 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Spitfire | 900 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Spitfire | 840 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Spitfire | 780 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Spitfire | 720 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
Spitfire | 670 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
Spitfire | 620 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
Fuselage Compatibility Guide: | Black only | Red only | Both | All Screws are Star Recessed |
Rear Wing | Model | Front Screw | Back Screw | |
Freeride | 500A/90 | M6 x 25mm | M6 x 25mm | |
Freeride | 500/90 | M6 x 25mm | M6 x 25mm | |
Freeride | 440/90 | M6 x 25mm | M6 x 25mm | |
Freeride | 400/90 | M6 x 25mm | M6 x 25mm | |
Freeride Small | 390/80 | M6 x 25mm | M6 x 25mm | |
Freeride Small | 370/80 | M6 x 25mm | M6 x 25mm | |
Freeride Small | 340/80 | M6 x 25mm | M6 x 25mm | |
Pump | 460/60 | M6 x 22mm | M6 x 22mm | |
Progressive | 475/68 | M6 x 22mm | M6 x 22mm | |
Progressive | 450/67 | M6 x 22mm | M6 x 22mm | |
Progressive | 425/66 | M6 x 22mm | M6 x 22mm | |
Progressive | 400/65 | M6 x 22mm | M6 x 22mm | |
Progressive | 375/64 | M6 x 22mm | M6 x 22mm | |
Progressive | 350/63 | M6 x 22mm | M6 x 22mm | |
Progressive | 325/62 | M6 x 22mm | M6 x 22mm | |
Progressive | 300/61 | M6 x 22mm | M6 x 22mm | |
Progressive | 275/58 | M6 x 22mm | M6 x 22mm | |
Progressive | 250/56 | M6 x 22mm | M6 x 22mm | |
Speed | 420/60 | M6 x 22mm | M6 x 22mm | |
Speed | 380/60 | M6 x 22mm | M6 x 22mm | |
Speed | 400F/60 | M6 x 22mm | M6 x 22mm | |
Skinny | 365/55 | M6 x 22mm | M6 x 22mm | |
Skinny | 362/50 | M6 x 22mm | M6 x 22mm | |
Skinny | 360/45 | M6 x 22mm | M6 x 22mm | |
Skinny | 359/45 | M6 x 22mm | M6 x 22mm | |
Skinny | 358/45 | M6 x 22mm | M6 x 22mm | |
Fuselage Compatibility Guide: | Black only | Red only | Both | All Screws are Star Recessed |
