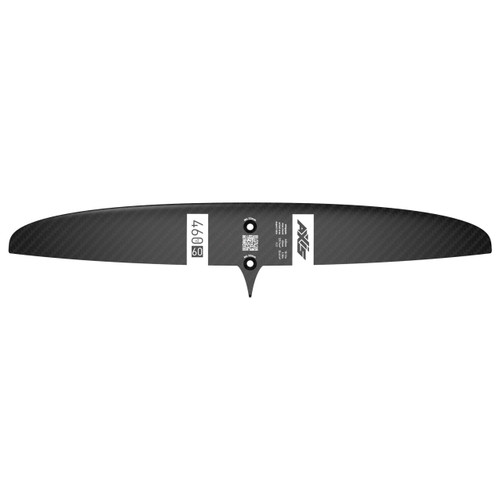

Axis 460 V2 Pump Carbon Rear Wing
Description:
Continuing the huge success of the AXIS 460 Carbon rear wing, was not an easy task.
We kept the same chord, foil section, and wingspan of the original 460, but added a splash of turn down on the tips, similar to the Progressive rears.
This created a rear wing that is fast, stable, pumps unreal, and likes to turn with good carving performance. The perfect setup for all dock start, flat water pump, downwinding, wake, lightwind winging, and more.
If you don't have the AXIS 460 v2 rear wing in your bag of rear wings, you are certainly missing out.
The AXIS 460 v2 carbon rear wing comes with its own AXIS cover, so your new AXIS wing is nicely protected
Specs:
- Wingspan: 460mm
- Max Chord: 60mm
- True Area: 229.90cm2
- Aspect Ratio: 9.3
- Volume: 82.82cm3
Axis Foil Hardware Guide
Connection | Head | Qty and Length | Diameter |
---|---|---|---|
Base Plate to Mast | Star Recessed | 2 x 35mm | M8 |
Aluminum Fuselage to Mast (through Doodad) | Star Recessed | 2 x 70mm | M8 |
Carbon Fuselage to Mast | Star Recessed | 2 x 30mm | M8 |
Front Wing | Model | Front Screws | Middle Screw | Rear Screw |
---|---|---|---|---|
High Performance Speed (HPS) | 1050 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
High Performance Speed (HPS) | 980 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
High Performance Speed (HPS) | 930 | M6 x 14mm | M8 x 16mm | M8 x 20mm |
High Performance Speed (HPS) | 880 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
High Performance Speed (HPS) | 830 | M6 x 14mm | M8 x 16mm | M8 x 20mm |
High Performance Speed (HPS) | 700 | M6 x 14mm | M8 x 16mm | M8 x 20mm |
High Performance Speed (HPS) | 650 | M6 x 14mm | M8 x 16mm | M8 x 20mm |
Broad Spectrum Carve (BSC) | 1120 | M8 x 20mm | M8 x 20mm | M8 x 20mm |
Broad Spectrum Carve (BSC) | 1060 | M8 x 20mm | M8 x 20mm | M8 x 20mm |
Broad Spectrum Carve (BSC) | 970 | M8 x 20mm | M8 x 20mm | M8 x 20mm |
Broad Spectrum Carve (BSC) | 890 | M6 x 18mm | M8 x 20mm | M8 x 20mm |
Broad Spectrum Carve (BSC) | 810 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Broad Spectrum Carve (BSC) | 740 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Pump & Glide (PNG) | 1310 | M8 x 20mm | M8 x 20mm | M8 x 20mm |
Pump & Glide (PNG) | 1300 | M8 x 20mm | - | M8 x 20mm |
Pump & Glide (PNG) | 1150 | M8 x 20mm | - | M8 x 20mm |
Pump & Glide (PNG) | 1010 | M8 x 20mm | - | M8 x 20mm |
Pump & Glide (PNG) | 910 | M8 x 20mm | - | M8 x 20mm |
Pump & Glide (PNG) | 910B | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Pump & Glide (PNG) | 850 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Surf Performance (SP) | 860 | M8 x 20mm | M8 x 20mm | M8 x 20mm |
Surf Performance (SP) | 760 | M8 x 20mm | M8 x 20mm | M8 x 20mm |
Surf Performance (SP) | 660 | M8 x 20mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team (ART) | 1099 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team (ART) | 999 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team (ART) | 899 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
AXIS Research Team (ART) | 799 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
AXIS Research Team (ART) | 699 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
AXIS Research Team PRO (ARTPRO) | 1401 | M6 x 14mm | M8 x 25mm | M8 x 25mm |
AXIS Research Team PRO (ARTPRO) | 1201 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team PRO (ARTPRO) | 1121 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team PRO (ARTPRO) | 1051 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team PRO (ARTPRO) | 1001 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team PRO (ARTPRO) | 1001 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team PRO (ARTPRO) | 951 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team PRO (ARTPRO) | 901 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team PRO (ARTPRO) | 851 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
AXIS Research Team PRO (ARTPRO) | 801 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
AXIS Research Team PRO (ARTPRO) | 751 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
AXIS Research Team V2 (ART V2) | 999 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team V2 (ART V2) | 939 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
AXIS Research Team V2 (ART V2) | 879 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Spitfire | 1100 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Spitfire | 1030 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Spitfire | 960 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Spitfire | 900 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Spitfire | 840 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Spitfire | 780 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
Spitfire | 720 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
Spitfire | 670 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
Spitfire | 620 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
Fuselage Compatibility Guide: | Black only | Red only | Both | All Screws are Star Recessed |
Rear Wing | Model | Front Screw | Back Screw | |
Freeride | 500A/90 | M6 x 25mm | M6 x 25mm | |
Freeride | 500/90 | M6 x 25mm | M6 x 25mm | |
Freeride | 440/90 | M6 x 25mm | M6 x 25mm | |
Freeride | 400/90 | M6 x 25mm | M6 x 25mm | |
Freeride Small | 390/80 | M6 x 25mm | M6 x 25mm | |
Freeride Small | 370/80 | M6 x 25mm | M6 x 25mm | |
Freeride Small | 340/80 | M6 x 25mm | M6 x 25mm | |
Pump | 460/60 | M6 x 22mm | M6 x 22mm | |
Progressive | 475/68 | M6 x 22mm | M6 x 22mm | |
Progressive | 450/67 | M6 x 22mm | M6 x 22mm | |
Progressive | 425/66 | M6 x 22mm | M6 x 22mm | |
Progressive | 400/65 | M6 x 22mm | M6 x 22mm | |
Progressive | 375/64 | M6 x 22mm | M6 x 22mm | |
Progressive | 350/63 | M6 x 22mm | M6 x 22mm | |
Progressive | 325/62 | M6 x 22mm | M6 x 22mm | |
Progressive | 300/61 | M6 x 22mm | M6 x 22mm | |
Progressive | 275/58 | M6 x 22mm | M6 x 22mm | |
Progressive | 250/56 | M6 x 22mm | M6 x 22mm | |
Speed | 420/60 | M6 x 22mm | M6 x 22mm | |
Speed | 380/60 | M6 x 22mm | M6 x 22mm | |
Speed | 400F/60 | M6 x 22mm | M6 x 22mm | |
Skinny | 365/55 | M6 x 22mm | M6 x 22mm | |
Skinny | 362/50 | M6 x 22mm | M6 x 22mm | |
Skinny | 360/45 | M6 x 22mm | M6 x 22mm | |
Skinny | 359/45 | M6 x 22mm | M6 x 22mm | |
Skinny | 358/45 | M6 x 22mm | M6 x 22mm | |
Fuselage Compatibility Guide: | Black only | Red only | Both | All Screws are Star Recessed |
