Description

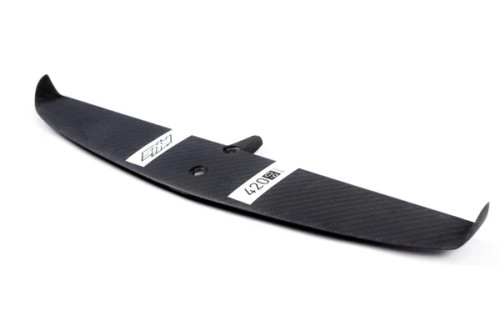

Imagine a shorter version of the AXIS 460 rear wing, with winglets.
That's exactly what the 420 carbon rear wing is.
Our fastest rear wing to date, at 420mm wingspan, 60mm chord, and 8.7 Aspect Ratio. FAST. And with the winglets it provides good turning and carving control.
If you are a performance Prone, SUP, Wing or Downwind foiler, looking for the fastest setup, then the 420 is just your wing.
When you purchase the AXIS 420mm carbon rear wing we include an AXIS padded cover with zipper, in heather gray, and AXIS branding, for safer setup, transportation and storage.
- WINGSPAN: 420 mm / 16.54 in
- CHORD: 60 mm / 2.36 in
- ASPECT RATIO: 8.57
- ACTUAL AREA : 212.63 cm² / 32.96 IN²
- PROJECTED AREA: 205.76 cm² / 31.89 IN²
- VOLUME: 76.95 cm³ / 4.70 IN³
Axis Foil Hardware Guide
| Connection | Head | Qty and Length | Diameter |
|---|---|---|---|
| Base Plate to Mast | Star Recessed | 2 x 35mm | M8 |
| Aluminum Fuselage to Mast (through Doodad) | Star Recessed | 2 x 70mm | M8 |
| Carbon Fuselage to Mast | Star Recessed | 2 x 30mm | M8 |
| Front Wing | Model | Front Screws | Middle Screw | Rear Screw |
|---|---|---|---|---|
| High Performance Speed (HPS) | 1050 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
| High Performance Speed (HPS) | 980 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
| High Performance Speed (HPS) | 930 | M6 x 14mm | M8 x 16mm | M8 x 20mm |
| High Performance Speed (HPS) | 880 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
| High Performance Speed (HPS) | 830 | M6 x 14mm | M8 x 16mm | M8 x 20mm |
| High Performance Speed (HPS) | 700 | M6 x 14mm | M8 x 16mm | M8 x 20mm |
| High Performance Speed (HPS) | 650 | M6 x 14mm | M8 x 16mm | M8 x 20mm |
| Broad Spectrum Carve (BSC) | 1120 | M8 x 20mm | M8 x 20mm | M8 x 20mm |
| Broad Spectrum Carve (BSC) | 1060 | M8 x 20mm | M8 x 20mm | M8 x 20mm |
| Broad Spectrum Carve (BSC) | 970 | M8 x 20mm | M8 x 20mm | M8 x 20mm |
| Broad Spectrum Carve (BSC) | 890 | M6 x 18mm | M8 x 20mm | M8 x 20mm |
| Broad Spectrum Carve (BSC) | 810 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
| Broad Spectrum Carve (BSC) | 740 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
| Pump & Glide (PNG) | 1310 | M8 x 20mm | M8 x 20mm | M8 x 20mm |
| Pump & Glide (PNG) | 1300 | M8 x 20mm | - | M8 x 20mm |
| Pump & Glide (PNG) | 1150 | M8 x 20mm | - | M8 x 20mm |
| Pump & Glide (PNG) | 1010 | M8 x 20mm | - | M8 x 20mm |
| Pump & Glide (PNG) | 910 | M8 x 20mm | - | M8 x 20mm |
| Pump & Glide (PNG) | 910B | M6 x 14mm | M8 x 20mm | M8 x 20mm |
| Pump & Glide (PNG) | 850 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
| Surf Performance (SP) | 860 | M8 x 20mm | M8 x 20mm | M8 x 20mm |
| Surf Performance (SP) | 760 | M8 x 20mm | M8 x 20mm | M8 x 20mm |
| Surf Performance (SP) | 660 | M8 x 20mm | M8 x 20mm | M8 x 20mm |
| AXIS Research Team (ART) | 1099 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
| AXIS Research Team (ART) | 999 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
| AXIS Research Team (ART) | 899 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
| AXIS Research Team (ART) | 799 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
| AXIS Research Team (ART) | 699 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
| AXIS Research Team PRO (ARTPRO) | 1401 | M6 x 14mm | M8 x 25mm | M8 x 25mm |
| AXIS Research Team PRO (ARTPRO) | 1201 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
| AXIS Research Team PRO (ARTPRO) | 1121 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
| AXIS Research Team PRO (ARTPRO) | 1051 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
| AXIS Research Team PRO (ARTPRO) | 1001 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
| AXIS Research Team PRO (ARTPRO) | 1001 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
| AXIS Research Team PRO (ARTPRO) | 951 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
| AXIS Research Team PRO (ARTPRO) | 901 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
| AXIS Research Team PRO (ARTPRO) | 851 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
| AXIS Research Team PRO (ARTPRO) | 801 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
| AXIS Research Team PRO (ARTPRO) | 751 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
| AXIS Research Team V2 (ART V2) | 999 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
| AXIS Research Team V2 (ART V2) | 939 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
| AXIS Research Team V2 (ART V2) | 879 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
| Spitfire | 1100 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
| Spitfire | 1030 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
| Spitfire | 960 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
| Spitfire | 900 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
| Spitfire | 840 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
| Spitfire | 780 | M6 x 14mm | M8 x 20mm | M8 x 20mm |
| Spitfire | 720 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
| Spitfire | 670 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
| Spitfire | 620 | M6 x 14mm | M8 x 16mm | M8 x 16mm |
| Fuselage Compatibility Guide: | Black only | Red only | Both | All Screws are Star Recessed |
| Rear Wing | Model | Front Screw | Back Screw | |
| Freeride | 500A/90 | M6 x 25mm | M6 x 25mm | |
| Freeride | 500/90 | M6 x 25mm | M6 x 25mm | |
| Freeride | 440/90 | M6 x 25mm | M6 x 25mm | |
| Freeride | 400/90 | M6 x 25mm | M6 x 25mm | |
| Freeride Small | 390/80 | M6 x 25mm | M6 x 25mm | |
| Freeride Small | 370/80 | M6 x 25mm | M6 x 25mm | |
| Freeride Small | 340/80 | M6 x 25mm | M6 x 25mm | |
| Pump | 460/60 | M6 x 22mm | M6 x 22mm | |
| Progressive | 475/68 | M6 x 22mm | M6 x 22mm | |
| Progressive | 450/67 | M6 x 22mm | M6 x 22mm | |
| Progressive | 425/66 | M6 x 22mm | M6 x 22mm | |
| Progressive | 400/65 | M6 x 22mm | M6 x 22mm | |
| Progressive | 375/64 | M6 x 22mm | M6 x 22mm | |
| Progressive | 350/63 | M6 x 22mm | M6 x 22mm | |
| Progressive | 325/62 | M6 x 22mm | M6 x 22mm | |
| Progressive | 300/61 | M6 x 22mm | M6 x 22mm | |
| Progressive | 275/58 | M6 x 22mm | M6 x 22mm | |
| Progressive | 250/56 | M6 x 22mm | M6 x 22mm | |
| Speed | 420/60 | M6 x 22mm | M6 x 22mm | |
| Speed | 380/60 | M6 x 22mm | M6 x 22mm | |
| Speed | 400F/60 | M6 x 22mm | M6 x 22mm | |
| Skinny | 365/55 | M6 x 22mm | M6 x 22mm | |
| Skinny | 362/50 | M6 x 22mm | M6 x 22mm | |
| Skinny | 360/45 | M6 x 22mm | M6 x 22mm | |
| Skinny | 359/45 | M6 x 22mm | M6 x 22mm | |
| Skinny | 358/45 | M6 x 22mm | M6 x 22mm | |
| Fuselage Compatibility Guide: | Black only | Red only | Both | All Screws are Star Recessed |
